Nanobox
Adaptable to the smallest windows

Nanobox is a modern system for small windows, designed to be installed into the window frame and protect the spaces discreetly and elegantly.

Very easy to install, practical, lightweight, and highly adaptable, it is applied directly onto the glass using an adhesive profile.

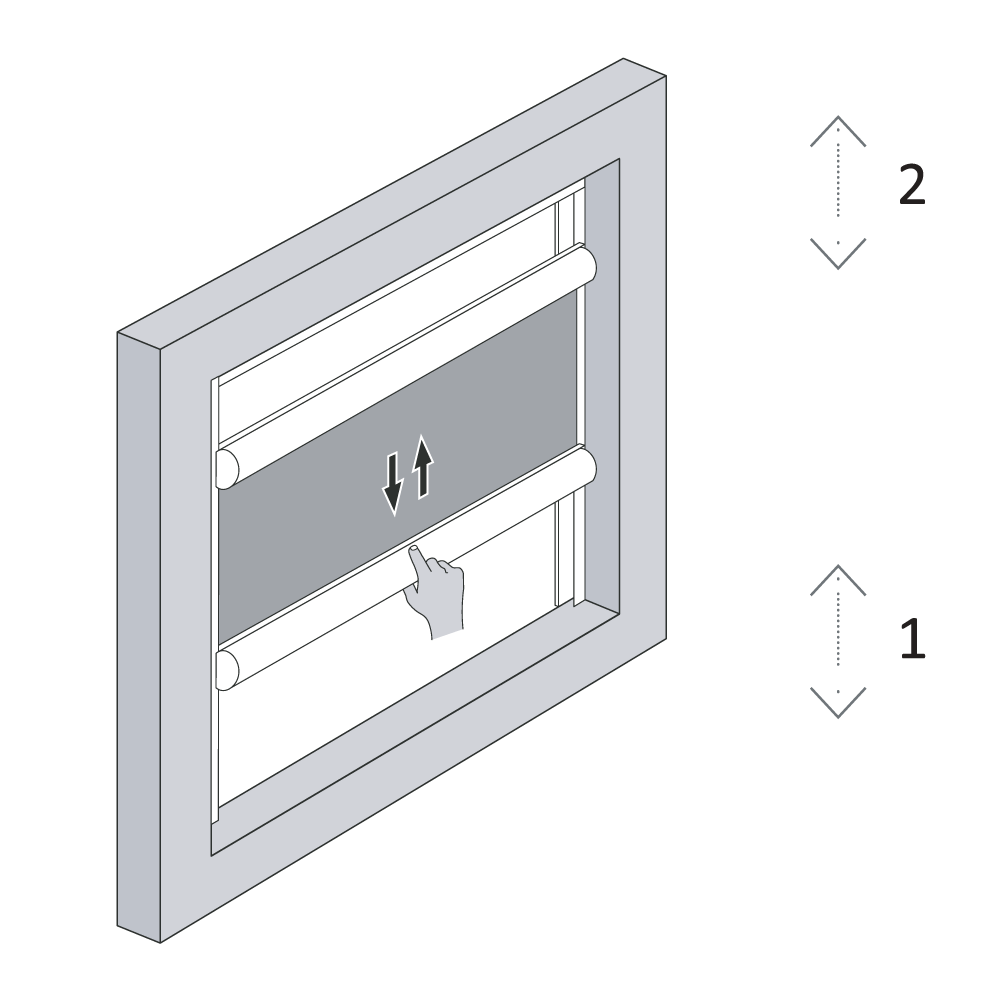

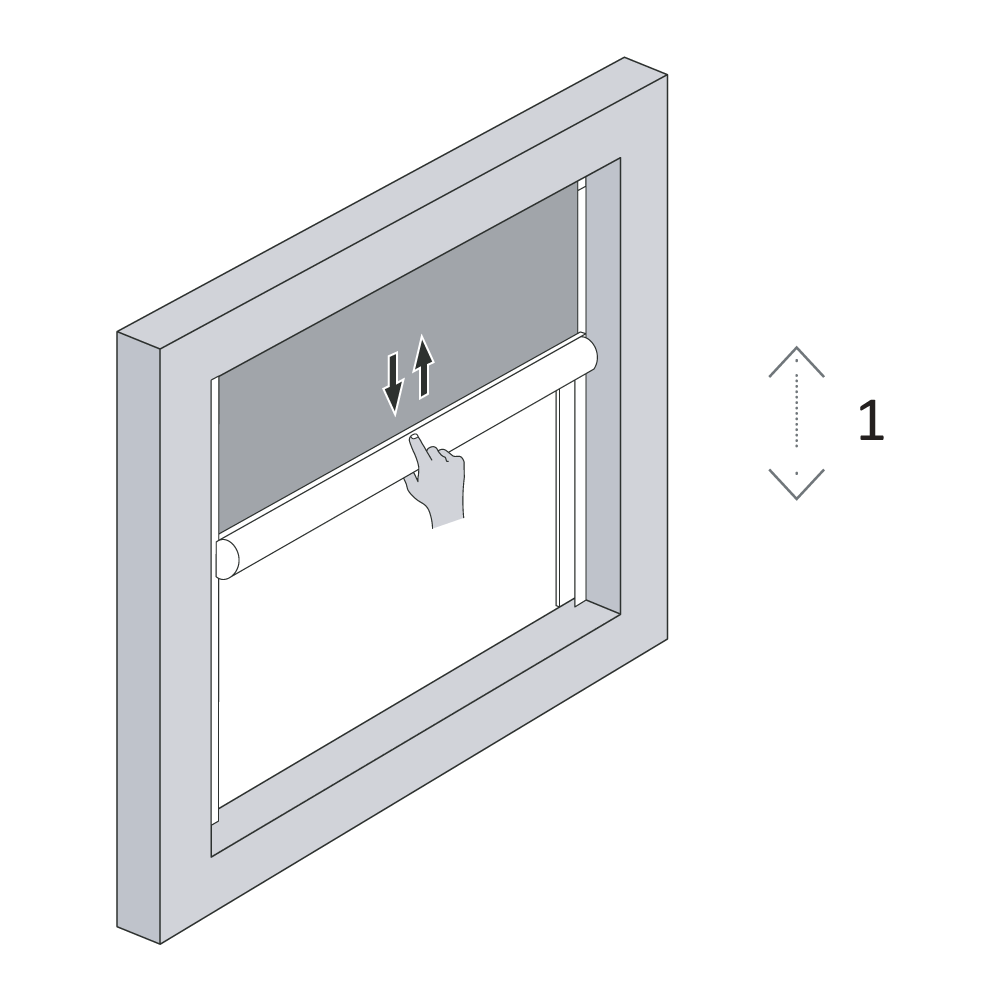

Available in two versions, ‘Single’, with a single headbox, or ‘Double’, with two vertically sliding headboxes, thanks to which the passage of light can be adjusted from bottom to top. Available with a wide range of fabrics to suit all furnishing styles.

Download technical datasheet

Simple

Double

Optional Pole

Minibox
Small spaces, big solutions

Suitable for tilt-and-turn windows and doors. They are quickly installed using Velcro or double-sided adhesive. They are designed to be integrated into the window frame, adapting to different types of windows and materials.

They can be spring-operated with a multi-stop device for stopping in any position and chain-operated, for larger glass surfaces.

The blackout side guides are made of aluminium, allowing a 100% blackout effect.

.

Minibox 140
Minibox 240
MINIBOX140

  • Roller blind with chain operation including spring box with multi stop.

  • Installed on the glass of the window frame with Velcro or double-sided tape.

  • Designed to be integrated into de window.

  • Internal application in skylights, tilt-and-turn windows, fixed glasses, and other vertical applications.

  • Wide range of uses and materials (wood, aluminium, PVC...).

  • Winding tube ø23 mm Max L 120 x H 240 cm with insert to facilitate insertion and replacement of the fabric.

  • 6060 T60 UNI 8278 extruded aluminium rectangular bottom bar with thermoplastic endcap.

  • 45 x 45 mm headbox and lateral guides in extruded aluminium 6060 T60 UNI 8278.

Download Datasheet
Minibox 240

  • Boxed roller blind chain operated.

  • Installed on the glass of the window frame with Velcro or double-sided tape. Designed to be integrated into de window.

  • Internal application in skylights, tilt-and-turn windows, fixed glasses, and other vertical applications.

  • Wide range of uses and materials (wood, aluminium, PVC...).

  • Winding tube ø23 mm Max L 120 x H 240 cm with insert to facilitate insertion and replacement of the fabric.

  • 6060 T60 UNI 8278 extruded aluminium rectangular bottom bar with thermoplastic endcap.

  • 45 x 45 mm headbox and lateral guides in extruded aluminium 6060 T60 UNI 8278.

Download Datasheet
