WingSafe Black Dot S35™
A SAFER SPACE FOR BIRDS. GREATER COMFORT FOR YOU. MORE SUSTAINABLE FOR THE PLANET.
One film, two solutions: bird protection and advanced solar control for glass surfaces.
For a safer world for birds
Every year in Europe, hundreds of millions of birds die after colliding with windows and glass facades. This phenomenon raises serious concerns for nature conservation, as it impacts bird populations and biodiversity.
The proliferation of buildings with extensive glazing is a key factor that has profoundly altered natural bird habitats. Common solutions, such as bird-of-prey stickers, have proven ineffective in reducing the frequency and severity of collisions.
Like Saint-Gobain, which researches and implements solutions to integrate bird-protection features into the design of new glazing models, Solarcheck is committed to making existing facades safer for birds.
Solarcheck WingSafe™ Black Dot S35 is the first exterior solar protection film to integrate a bird collision prevention solution and come with a 10-year warranty. Independently tested in the Flugtunnel II wind tunnel in Austria, WingSafeTM Black Dot S35 achieved a TF rating of 13%, confirming its effectiveness in reducing bird collisions.
WingSafe™ Black Dot S35 is a sustainable innovation: it helps reduce carbon footprints by improving energy efficiency while enhancing bird safety. Solarcheck WingSafeTM Black Dot S35 combines solar performance, durability, and environmental responsibility in a single innovative product.
Solarcheck® WingSafe Black Dot S35™
THE FIRST SOLAR CONTROL FILM WITH INTEGRATED BIRD COLLISION PROTECTION
– 10 year warranty –
We design sustainable and bird-friendly buildings

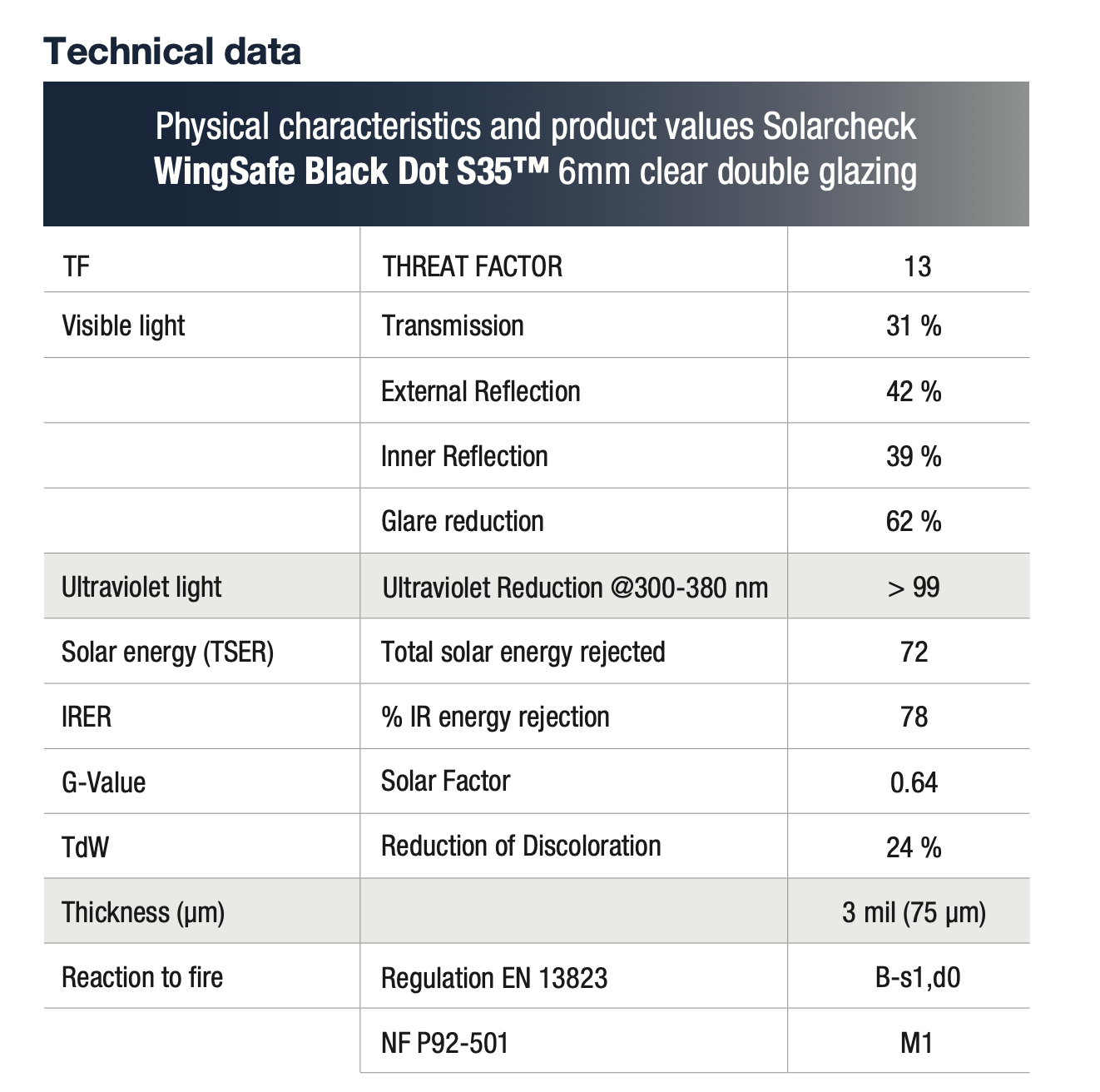

1- TF = 13% THREAT FACTOR on a reflective surface (WIN-Tests Flugtunnel II, Austria)
2- Multi-layer film composed of optically transparent polyester for exterior use, incorporating an integrated bird-strike pattern and protected by Solarcheck’s proprietary weather-resistant coating.
.
3- Product integrated design: Unlike stickers, it will not fade, become damaged, or be accidentally removed.
4- No edge sealing is required on vertical surfaces (except where water accumulation may occur in timber structures).
.
5- It is applied like any other exterior protective film.
6- Guaranteed for up to 10 years on vertical surfaces*.
7- Special adhesive allowing removal without leaving residue on the glass.
8- Standard roll dimensions: 152 cm × 30 m
9- Longer rolls available for project-specific requirements and custom cutting.
10- IIt requires no special maintenance. The pattern (dot screen printing) has no impact on cleaning.
11- Rejects up to 72% of solar energy, 62% of glare and more than 99% of harmful UV rays.
Solarcheck ® WingSafe Black Dot S35™
The Solarcheck WingSafe™ Black Dot S35 was tested at the Hohenau- Ringelsdorf Biological Station in Austria (WIN II wind tunnel tests). The Threat Factor (TF) obtained was 13% in sunny weather and 16% in cloudy weather.
The Threat Factor (CF) of a solution is determined by flying at least 80 birds throu- gh the tunnel and observing whether they fly toward the control glass or the patter- ned test glass. For example, if 100 birds (>80) fly through the tunnel and 3 fly toward the patterned test glass while 97 fly toward the control glass, 3% (3/100) of the birds will fly toward the patterned test glass; in this case, the result will be: CF = 3.
Most often, bird-collision films are tested on clear glass. However, in real-world installations, untreated glass is rarely used: modern buildings typically incorporate reflective coatings, and older windows are fitted with solar control films to improve their performance.
Currently WingSafe Black Dot S35™ It comes in only one form: 11 mm black dots arranged in a 65 mm × 65 mm orthogonal grid.
Exterior view
Internal view
Solarcheck WingSafe™ Black Dot S35 is the first – and currently the only – tested solution that offers advanced solar protection and effective bird-strike mitigation in a single product.
WingSafe™ Black Dot S35 This is a product manufactured by Saint-Gobain Solar Gard in the United States.
